Solar Panels Production Line Hi-pot

Are you looking to venture into the solar industry or expand your current operations? At Edobo Solar, we provide top-of-the-line solar panel production equipment to help you set up your own manufacturing line. With our state-of-the-art machines, you'll be able to produce high-efficiency solar panels tailored to your market's needs.

Lähetä kysely

Kuvaus

Tekniset parametrit

Hi-pot

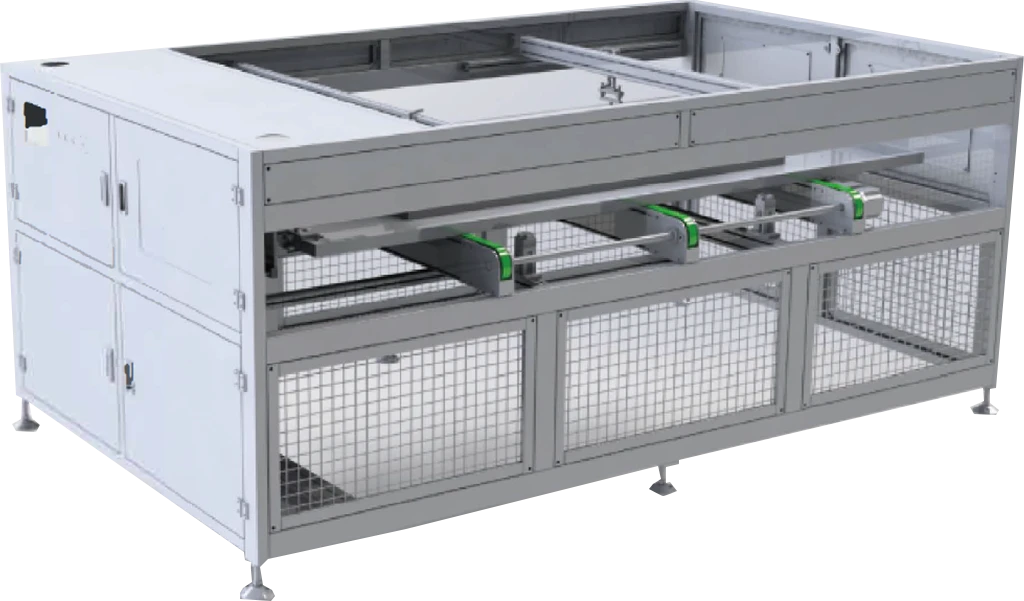

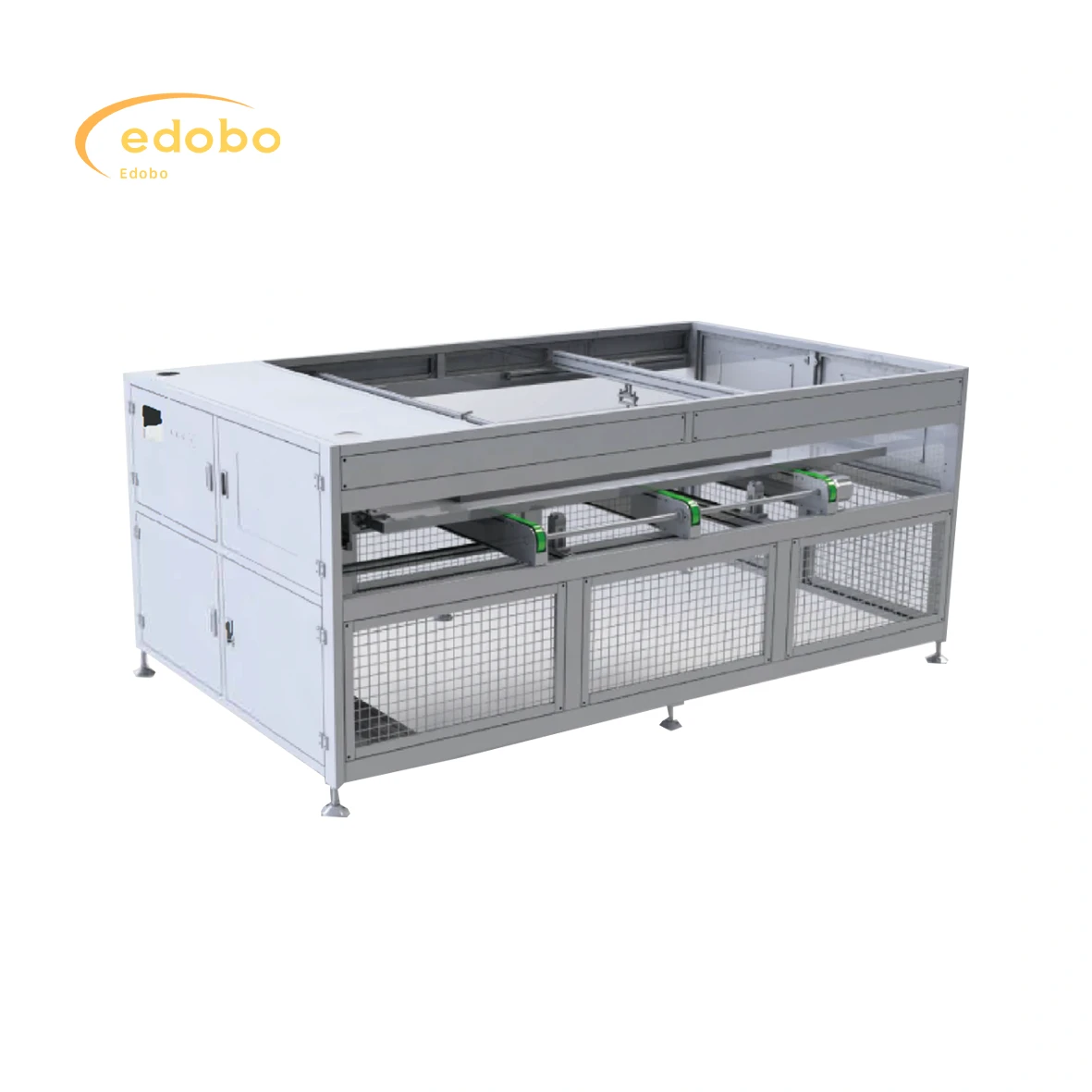

Solar Panels Production Line Hi-pot

♦ Applicable components: conventional, half sheet and double glass components in length 1640-2500mm & width 950-1400mm
♦ Working beat: 22 seconds
♦ Maximum production capacity: 3,400 pcs / day
♦ Online operator: 0 people
♦ Rated power rating (KW):2.0KW
♦ Pressure (M Pa):0.6-0.BM Pa
♦ Overall dimension (length*width*height): 3200mm*1850mm*1400mm
♦ weight:980KG

Solar Panels Production Line Hi-pot

1. Equipment movement is stable and accurate in place;
2. Component positioning, energize, automatically test pressure resistance after grounding, and automatic alarm when bad;
3. Before the test, the components are lifted up through the insulation pad to ensure the safety of the test and personnel;
4. Docking with the signal of the insulation withstand voltage tester;
5. A transparent protective cover is installed on the outside to facilitate the personnel to observe the data of the pressure withstand tester and eliminate the alarm points in time;

Solar Panels Production Line Hi-pot
